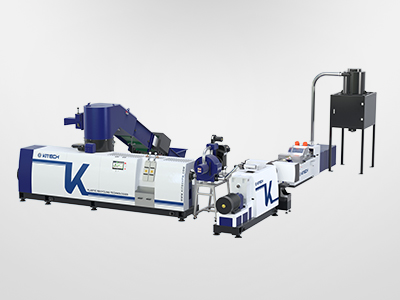

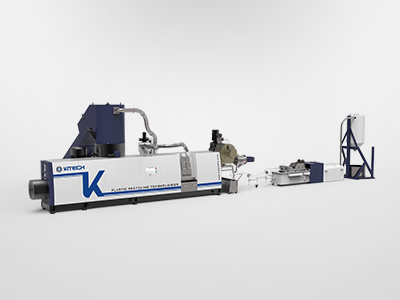

PE/PP/ABS/PS Regrind Pelletizing Machine
PE/PP/ABS/PS rigid plastics is one kind of common recycling material, our solution is efficiency and environment friendly, include plasticization, pelletizing and drying. PLC intelligent system realized high automatic, the whole line just need 2-3 man to operate. With 25 years of experience in recycling, KITECH not only mastered the key technology, but also improved machine designs to address specific product features. KITECH offers more professional recycling solutions for PE/PP/ABS/PS rigid plastics that are high output and low energy consumption.
Know how
Provide
turnkey
Recycle more
Modular Design
Feeding
Belt conveyor for plastic scrap feedingl automatically, Feeding speed adjustable by inverter controller according to the feeding amount.
Extrusion
High efficiency barrel and screw used for extruder with excellent plasticizing result and high output capacity. Adopt high wear resistant alloy material to ensure 1.5 times service life of normal one.
Degassing
Force double vacuum degassing system to get rid of the low molecular, moisture and printing ink effectively, make sure high quality output pellets.
Filtration
Plate type, piston type, back flush type and automatic self-cleaning type filter, you have different choice according to impurity contents in material and your habit.

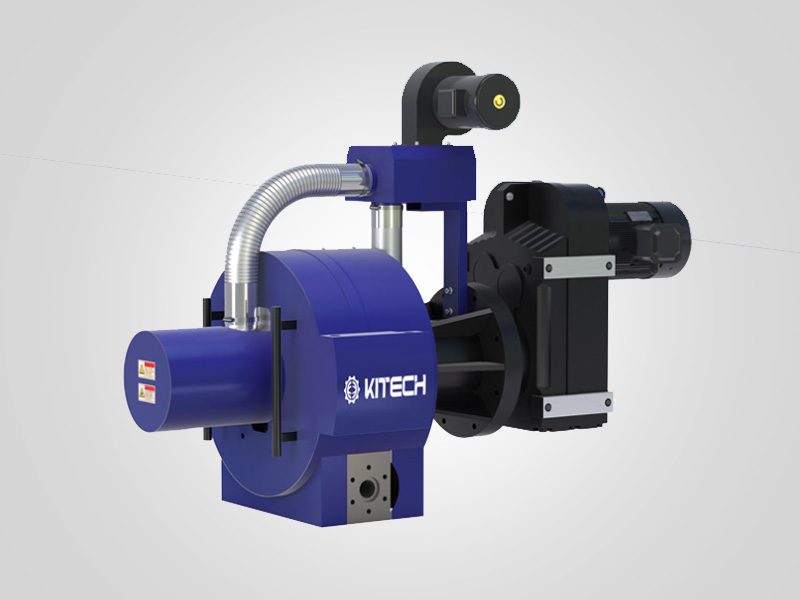

Pelletizing
New European design water ring pelletizer, Cutting speed of pelletizer controlled automatically by PLC according to the pressure of die head, which could achieve the uniform size for output pellets.
Drying
Vibration dryer combined with horizontal type centrifugal dryer to get well dried final granules.
Controlling
Thanks to Siemens PLC and HMI, KCP series recycling pelletizing machine provides high intelligent operation system which is easy to operate and save manpower.
Floor Plan
Technical Data
| Type | KSP100 | KSP120 | KSP150 | KSP180 | KSP200 | |
| Capacity (KG/H) | 300-380 | 400-500 | 600-750 | 800-950 | 1000-1200 | |
| Energy consumption (KWH/KG) | 0.2-0.33 | 0.2-0.33 | 0.2-0.33 | 0.2-0.33 | 0.2-0.33 | |
| A / Length (MM) | 12,500 | 13,800 | 14,900 | 15,200 | 16,500 | |
| B / Width (MM) | 2,500 | 2,500 | 2,500 | 3,300 | 3,300 | |
| C / Height (MM) | 3,750 | 3,980 | 4,250 | 4,460 | 4,850 | |
| Extruder | Screw diameter (MM) | Φ100 | Φ120 | Φ150 | Φ180 | Φ200 |
| L/D | 25-35 | 25-35 | 25-35 | 25-35 | 25-35 | |
| Motor power (KW) | 90-110 | 132-160 | 160-200 | 250-315 | 315-355 | |
|
Filter (options) |
Two position plate type | |||||
| Two position piston type | ||||||
| Back flush piston type | ||||||
| Automatic self-cleaning type | ||||||
| 2nd Extruder (Optional) | Screw diameter (MM) | Φ120 | Φ150 | Φ150 | Φ180 | Φ200 |
| L/D | 10-18 | 10-18 | 10-18 | 10-18 | 10-18 | |
| Motor power (KW) | 37-45 | 45-55 | 55-75 | 75-90 | 900-110 | |
| Downstream (options) | Water ring pelletizer | |||||
| Strand pelletizer | ||||||
| Automatic strand pelletizer | ||||||
| Underwater pelletizer | ||||||
