Plastic Film Recycling Washing
Machine
Programmable
Control
Modular
Combination
lnstallation
Multiple
Materials
Process
Applicable materials
Introduction to Modular
Design
Modular
Pre-processing modular is freely consists of bale
breaker,screen,pre-washer,sorter,metal detector,label remover,and some other
equipments. It provides pre-treatment for the raw material.
Modula
Large materials are processed into small pieces in this modular, which improves
the washing result and makes the final product easy to packing.
Modular
Dust, glue, label,oil and other impurities can be removed highly effective by
washing mod -ule. This modular combines foating washing, hot washing, salty
water separating, high-speed friction washing, low-speed friction, spraying, and
some other washing equipments.
Modular
Squeezing and drying treatment is used to remove the moisture in the material
with low packing density. Mechanical dewatering treatment is used to process the
material with high packing density to reduce energy consumption.
Modular
Near Infrared Spectrum , Aerodynamic principles material, and many other
technology is used to separate material, color, and specific gravity to purify
and sort products.
Modular
Weighing and metering system helps you monitor the output and energy consumption
of production line in real time under different materials and production
conditions. All data can be connected to ERP system for quantitative assessment.
Which ensures that we can update and maintain all user’s systems for a long
term.
Unit Introduction
Belt Conveyor
Heavy duty type, adopt gear motor;
Side walls to avoid spilling of feeding material;
Crusher
Optimally designed blades are sharp and
powerful;Enclosed cutting chamber to prevent materials flying out; Knives are
externally adjustable;
Shredder
Special designed hopper to avoid material flying out;
4-way rotating knives with special knife holders;
Extremely robust pedestal bearing housings;
External mounted of bearing pedestal designs;

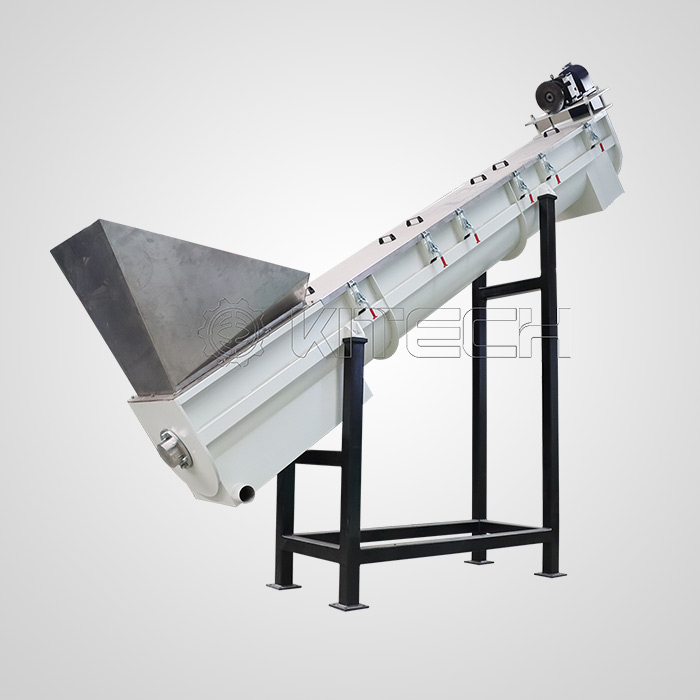

Screw Conveyor
Screw adopt wear resistant stainless steel;
Triple sealing, External bearing design;
Washing Tank
All Thumb-wheel speed variable by inverter control
Heavy duty washing, separation of different specific densities material;
All part touch raw materials are stainless steel;
Friction Washer
Rotor and blades adopt wear resistant
steel; Rotor with dynamic balance treatment. Accuracy: ±3-5g; Active material
washing to protect downstream units;
Centrifugal Dryer
Rotor with dynamic balance treatment.
Accuracy: ±3-5g; Mild circular screen in polygon 4 piece version;Washer/dryer
housing built in stainless steel welded construction;
Squeezing Dryer
Heavy built shaft and balde;
Double hydraulic press units;
Motorized Screw Squeezing
Hot Air Pipe Dryer
Pipeline built in stainless steel welded
construction; All part touch raw materials are stainless steel; Hot air drying
system;
Storage Buffer
Direct connect with pelletizing process;
Large Storage capacity;
Electrical Cabinet
International brand Low voltage
components ; Double circuit safety relay; Intelligent and modular PLC
controlling system;
Features Introduction
Ability
Thanks to inovtive、washing technology and high quality recycling and estfrmanen
KITech iellgent washing systen removes the ngest diffhcult soninente from waste
plsss for customers.
Stability
KITECH washing system is available for 24 hours working non-stop operation.
Optimized design and top brand components to each unit. Which could minimize the
downtime ratio and save the maintenance time. This ensures the maximum
availability and highest productivity for user.
Efficiency
KITECH washing system is designed in all details for effciency improving. The
modular design could simplifty the planning and aooelerate the implementation.”
The system have very low consumption values for electricity, water and labor.The
operating costs and maintenance costs are absolutely reduced. Consistently the
lowest investment costs and highest value creation.
Modularity
KITECH washing system is a flexible modular system. The process required by any
customer for different application could be combined freely. This design reduces
planning, construction and assembly time effectively. And it’s possible to
adjust the system regard to technological modifh -cation and market changing.
This makes the investment future-proofing.
Control
the whole system easier and more reliable to control, the remotes monitoring and
maintenance are available for different production line. The intelligent control
has display for operating data, it also collect the data of the consumption and
the capacity from production lines. Which ensures the connection between the
enterprises and the Internet, will improve the efficiency of enterprise
management.
Service
KiTech washing system is a flexible and customer- oriented recycling solution.
All the components of the whole line is globally well- known brands, which
ensures the reliable operation and serves your exact needs. Furthermore, our
engineers will partner with you for the whole project. Building design, overseas
installation, commissioning and training are available. Machine warranty with
spares in stocking and in-time delivery. Consistently quick and careful service
in pre-sales and after-sales process.
Floor Plan
Technical Data
|
Type |
LDW300 |
LDW500 |
LDW1000 |
|
|
Capacity(kg/h) |
300 |
500 |
1000 |
|
|
Energy consumption(KWH) |
95 |
156 |
229 |
|
|
Installation power(KWH) |
146 |
241 |
352 |
|
|
Dimension: L*W*H(m) |
Depends on factory layout |
Depends on factory layout |
Depends on factory layout |
|
|
Belt conveyor |
Belt width(mm) |
600 |
800 |
1200 |
|
Motor power(KW) |
1.5 |
2.2 |
3 |
|
|
Metal detector-Optional |
Pass width(mm) |
800 |
1000 |
1200 |
|
Pass height(mm) |
400 |
400 |
400 |
|
|
Crusher |
Grind chamber(mm) |
700*1000 |
– |
|
|
Motor power(KW) |
55 |
75 |
– |
|
|
Shredder |
Grind chamber(mm) |
|
|
|
|
Motor power(KW) |
|
|
75 |
|
|
Screw conveyor |
Screw diameter(mm) |
300 |
400 |
500 |
|
Motor power(KW) |
3 |
4 |
5.5 |
|
|
Washing tank |
Dimension of tank(mm) |
4000mm×1400mm |
5000mm×1600mm |
7000mm×1800mm |
|
No. of thumb-wheel(pcs) |
4 |
6 |
7 |
|
|
Discharge plate valve(pcs) |
2ports*2=4 |
3ports*2=6 |
4ports*2=8 |
|
|
Friction washer |
Screw diameter(mm) |
300 |
400 |
500 |
|
Motor power(KW) |
11 |
18.5 |
30 |
|
|
Centrifugal dryer |
Rotor diameter(mm) |
650 |
– |
– |
|
Motor power(KW) |
30 |
– |
– |
|
|
Squeezing dryer |
Screw diameter(mm) |
|
320 |
410 |
|
Motor power(KW) |
|
55 |
75 |
|
|
Hot air pipe dryer |
Pipe diameter(mm) |
159 |
219 |
330 |
|
Heating power(KW) |
36 |
48 |
60 |
|
|
Storage buffer |
Storage capacity(CBM) |
3 |
4 |
6 |
|
Motor power(KW) |
2.2 |
3 |
4 |
|
|
Waste water filtration device-Optional |
Vibration screen size |
800 |
1000 |
1200 |
|
Screen mesh |
40 |
40 |
40 |
|
|
Electrical cabinet |
PLC controller |
|
|
|
|
Button type |
|
|
|
|
|
Man power(person/shift) |
3 |
3-4 |
3-4 |
|
|
Delivery time(day) |
60-90 |
60-90 |
60-90 |
|
|
Warranty(month) |
12 months |
12 months |
12 months |
|
|
Technical assistance |
Egnineer available to service machinery overseas |
Egnineer available to service machinery overseas |
Egnineer available to service machinery overseas |
|
Standard
Alternative
